Product Description

The Shock-A-Vodka (SAV) Dome System is a high-impact liquor dispensing unit designed to serve spirits at a chilling 5°F. Unlike standard tap systems, the SAV uses gravity to feed liquor from inverted bottles directly into frosted domes, where the liquid is super-chilled until it becomes thick and syrupy. Encased in a layer of real ice and illuminated by LED lights, the domes create a mesmerizing focal point that drives merchandising and impulse sales. This system creates a premium experience, delivering smooth, ice-cold shots or martinis without the need for shakers or dilution.

Available Configurations

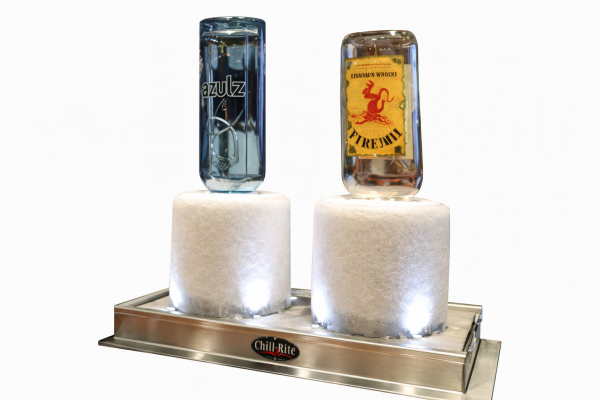

Portable Unit A standalone, plug-and-play mobile station.

• Installation: No bar modifications required. Simply roll into place and plug in.
• Best For: Special events, bottle service, rentals, or flexible bar layouts.
• Power: Plug into a standard 115V / 20AMP outlet.

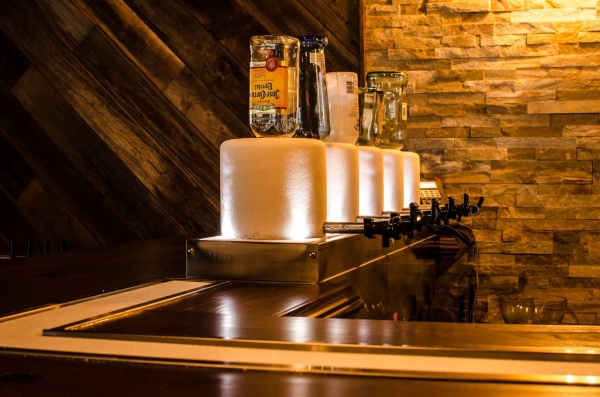

Slide-In Unit A permanent fixture designed to integrate seamlessly into a bar top.

• Installation: The bar top is cut out, and the unit slides in, resting on a 1" flange.
• Refrigeration: The chiller can be located below the unit or remoted up to 75 feet away to save bar space.
• Best For: Permanent installations and high-volume commercial bars.

Key Features

• 5-Degree Dispensing: Chills liquor to 5°F, creating a smooth, viscous pour that customers love.

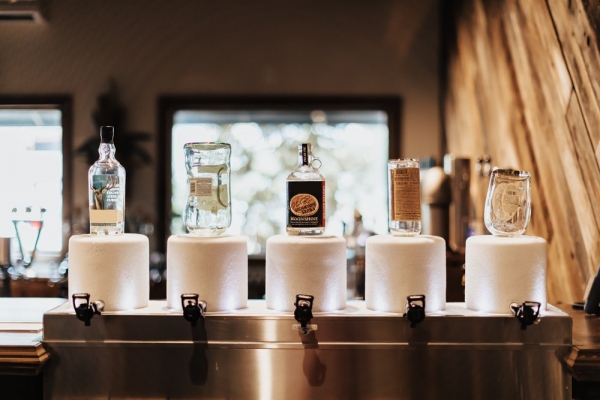

• Visual Impact: Domes build a layer of fresh ice in just 30 minutes, enhanced by internal LED lighting to showcase the product.
• Gravity Feed: No pumps or complex dispensing hardware required; liquor feeds naturally from the inverted bottle.
• Capacity: Each dome holds 1.75 Liters (approx. 2.5 Quarts) of spirits.
• Maintenance: Built-in heater and defrost systems eliminate excess moisture and ensure fresh ice buildup daily.

Technical Specifications

Operation

• Temperature: Dispenses at 5°F.
• Pull Down Time: Product reaches serving temperature in approximately 3 hours.
• Ice Build Time: Domes frost over in 30 minutes.
• Dispensing: Manual valve faucet with positive shut-off.

Power & Hardware

• Voltage: 115V Receptacle (NEMA 5-15P).
• Amperage: 10 Amps total (requires 20 Amp circuit).
• Refrigeration: Utilizes ICE-33 or ICE-75 refrigeration units.
• Weight: Approximately 200 lbs (Portable Unit).
