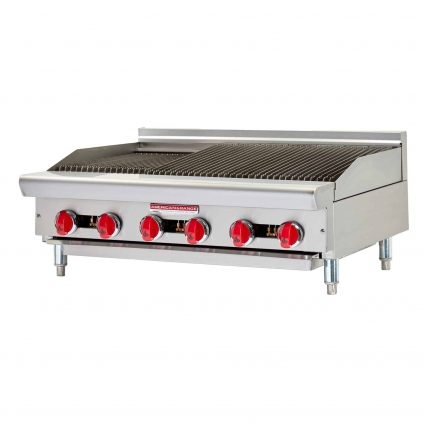

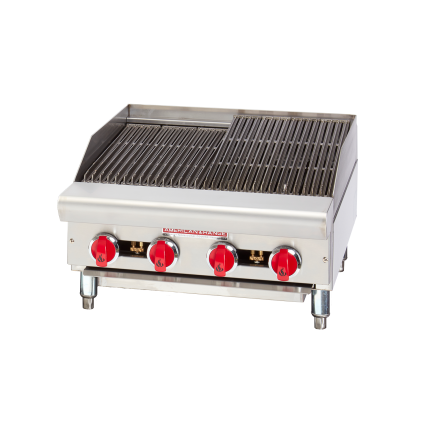

The American Range Countertop Radiant Charbroiler delivers classic underfired char-broiled flavor in a compact, countertop-ready package. Available in 12", 24", 36", 48", 60", and 72" widths, it's built to fit any kitchen footprint from a satellite station to a full cook line.

Heavy-duty cast iron radiants sit beneath 15,000 BTU/hr. burners spaced every 6", delivering even heat distribution across the full 21" deep cooking surface. Two grate positions let operators dial in cooking intensity, while reversible cast-iron grates extend usable life and give food attractive sear marks.

Built with a stainless steel front, sides, and landing ledge, this charbroiler includes a stainless steel grease pan for easy cleanup and a 4" side and back splash to protect surrounding surfaces. 4" adjustable inset legs accommodate a marine edge base, with 4 legs standard on 12"–48" models and 6 legs on the 60" and 72" models. Backed by a two-year limited warranty on parts and labor.

Functional Features:

• Available in 12", 24", 36", 48", 60", and 72" widths
• 15,000 BTU/hr. burners every 6"
• Two grate positions for cooking
• 21" deep cooking surface

Construction:

• Heavy duty cast iron radiant for even heating
• Reversible cast-iron grates
• Stainless steel front, sides, and landing ledge
• Stainless steel grease pan for easy cleaning
• 4" side and back splash
• 4" adjustable inset legs to accommodate a marine edge base
• 4 legs on 12" to 48" models; 6 legs on 60" and 72" models

Technical Specifications:

• Model: ARSRB
• Widths: 12", 24", 36", 48", 60", 72"
• Burner Output: 15,000 BTU/hr. per burner (spaced every 6")
• Cooking Surface Depth: 21"
• Warranty: Two-year limited, parts and labor

Included Accessories:

• Stainless steel grease pan
• Reversible cast-iron grates

Optional Accessories:

• Equipment stand
• Casters
