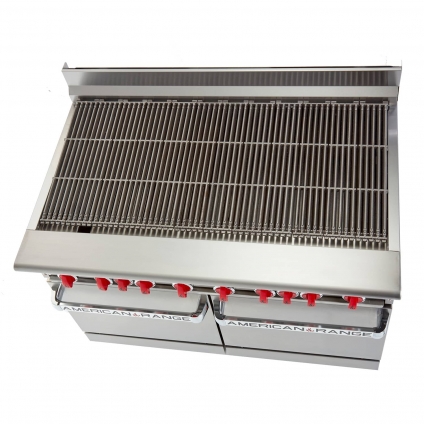

The American Range Radiant Broiler with Oven Base pairs a radiant charbroiler top with a full oven base beneath, giving operators broiling and roasting capacity in a single footprint. Available in 24" (AR-2RB), 36" (AR-3RB), and 48" (AR-4RB) widths, the oven base can be configured as convection, innovection, or standard oven to match kitchen needs.

15,000 BTU/hr. burners spaced every 6" deliver consistent heat across the broiler surface, positioned at a 38" cooking height for comfortable operator access. A 6" stub back comes standard, and the unit is available with optional casters for mobility.

Backed by a two-year limited warranty covering parts and labor.

Functional Features:

• Available in 24" (AR-2RB), 36" (AR-3RB), and 48" (AR-4RB) widths
• Oven base available in convection, innovection, or standard oven
• 15,000 BTU/hr. burners every 6"
• 38" cooking height

Construction:

• 6" stub back standard
• Optional casters

Technical Specifications:

• Models: AR-2RB, AR-3RB, AR-4RB
• Widths: 24", 36", 48"
• Burner Output: 15,000 BTU/hr. per burner (every 6")
• Cooking Height: 38"
• Warranty: Two-year limited, parts and labor

Optional Accessories:

• Casters
