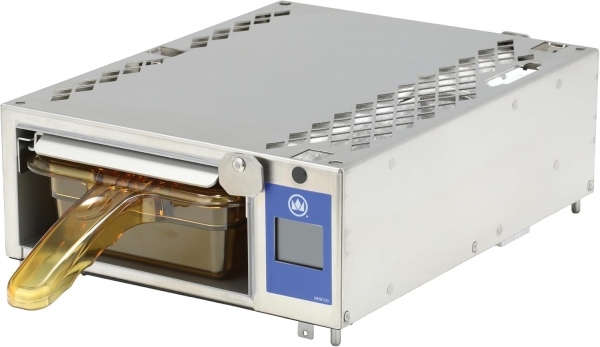

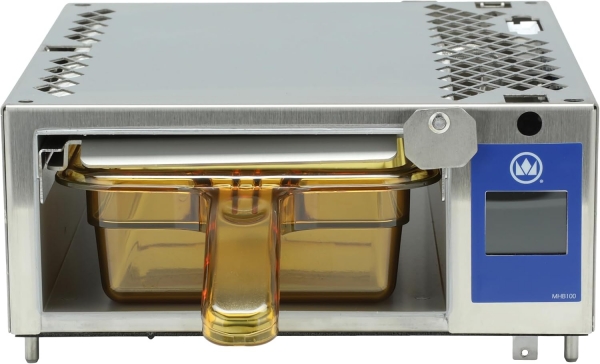

The Prince Castle MHB100HM1 is a pass-through holding module that stacks onto the MHB Main Base or Expansion Base. Each module holds one 1/3 size pan (sold separately) with independent temperature and hold-time control — allowing different food types to be held at their optimal conditions across modules.

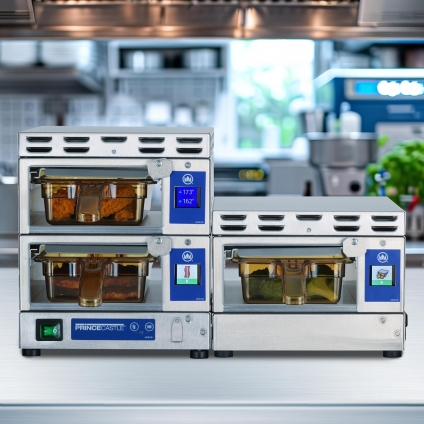

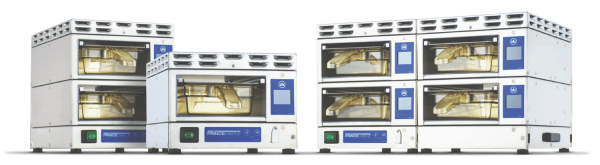

The pass-through design provides access from both sides of the unit, reducing reach distance and speeding up assembly during peak service. Modules stack vertically and can be seamlessly switched between pass-through and single-sided orientation to match evolving kitchen workflows.

Up to 8 total modules can run on a single circuit across the MHB system, making it one of the most power-efficient holding solutions available for operations with growing menus and limited electrical infrastructure.

Standard Features:

• Pass-through holding module — access from both sides
• Independent temperature and hold-time control per module
• Stacks onto MHB Main Base or Expansion Base
• Includes one pan cover
• Switchable between pass-through and single-sided orientation
• Up to 8 modules on a single circuit
• USB port for menu updates via PC application

Technical Specifications:

• Model: MHB100HM1
• Description: Pass-through Holding Module (includes one pan cover)
• Pan Capacity: 1 pan (1/3 size, sold separately)
• Voltage: 120V, 50/60 Hz
• Wattage: 180W
• Dimensions (W × H × D): 10.28" × 4.11" × 13.76" (26.1 × 10.4 × 35.0 cm)
• Shipping Weight: 10 lbs (4.5 kg)
• Region: North America
• Certifications: ETL/cETL (Intertek)
• Warranty: 1-year parts and labour
