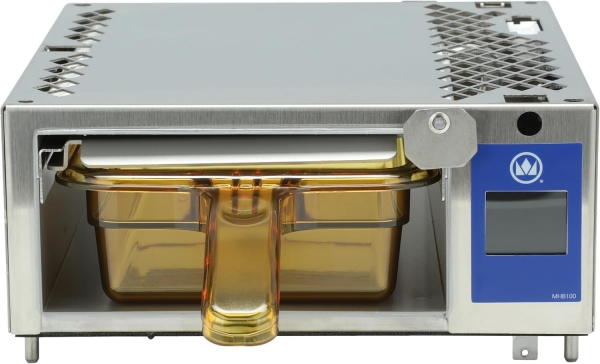

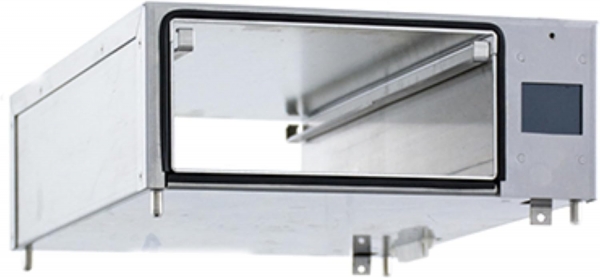

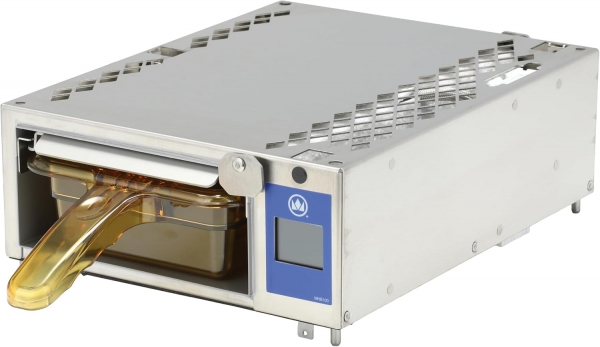

The Prince Castle MHB100HM1-SS is a single-sided holding module that stacks onto the MHB Main Base or Expansion Base. Designed for wall-mounted or back-of-line installations where front-only access is sufficient, it provides the same independent temperature and hold-time control as the pass-through module in a single-access configuration.

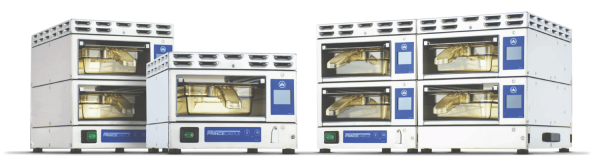

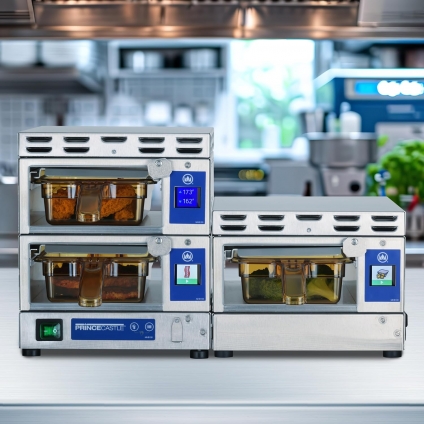

Each module holds one 1/3 size pan (sold separately) with its own temperature and timer settings, enabling different food types to be held at their ideal conditions across a multi-module setup. Stack vertically on a base unit to build capacity without expanding your counter footprint.

The single-sided module can be switched to pass-through orientation if your kitchen layout evolves, providing long-term flexibility across the life of the system.

Standard Features:

• Single-sided holding module — front-access design
• Independent temperature and hold-time control per module
• Stacks onto MHB Main Base or Expansion Base
• Includes one pan cover
• Switchable to pass-through orientation if needed
• Up to 8 modules on a single circuit
• USB port for menu updates via PC application

Technical Specifications:

• Model: MHB100HM1-SS
• Description: Single-Sided Holding Module (includes one pan cover)
• Pan Capacity: 1 pan (1/3 size, sold separately)
• Voltage: 120V, 50/60 Hz
• Wattage: 180W
• Dimensions (W × H × D): 10.28" × 4.11" × 13.76" (26.1 × 10.4 × 35.0 cm)
• Shipping Weight: 10 lbs (4.5 kg)
• Region: North America
• Certifications: ETL/cETL (Intertek)
• Warranty: 1-year parts and labour
