Product Description

The Fais Do Do Tower is a striking dispensing solution designed for high-volume commercial venues and island bars. Fabricated entirely from industrial-grade 304 Schedule 10 Stainless Steel, this cantilever-style tower features a robust single-pedestal construction that creates a dramatic "floating" aesthetic. The series is defined by its open architecture, offering Single Faced models for standard service and Double Faced (DF) models for high-traffic island bars, allowing bartenders to pour simultaneously from both sides of the tower.

Face Configurations

Single Faced (SF)

• Application: Standard bars, back bars, or service stations where dispensing is required from one side only.
• Capacity: Configurable from 4 to 18 faucets in a single row.
• Leg Orientation: Must specify Left Side or Right Side leg placement to match bar layout.
• Availability: Counter Mount and Soffit Mount.

Double Faced (DF)

• Application: Island bars, stadiums, and high-volume taprooms. Faucets are mounted on both the front and back of the horizontal pipe, maximizing serving efficiency without increasing the tower's footprint.
• Capacity: Configurable from 4 to 10 faucets per side.
• Availability: Counter Mount and Soffit Mount.

Mounting Styles

• Counter Mount (Model: CM) The distinctive L-shaped cantilever design that secures directly to the bar top with a single offset pedestal.
  • Best For: Creating a centerpiece on a front bar or island with minimal counter footprint.
  • Versions: Single Faced & Double Faced.
  • Clearance: 10 7/8" from deck to faucet center.
  • Base: 7 1/2" diameter flange (Single Faced) or 9" diameter flange (Double Faced).
  • Total Height: 13 1/2".

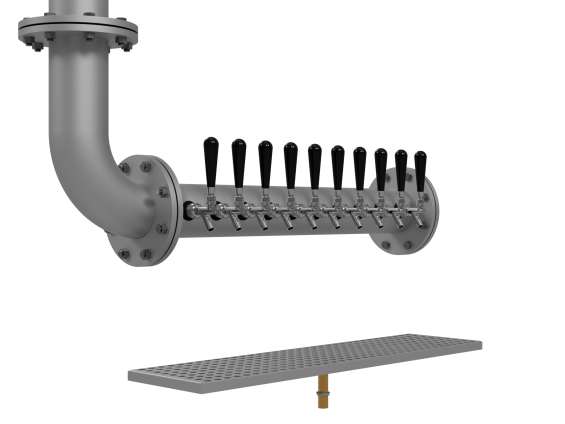

• Soffit Mount (Model: SM) A suspended configuration that hangs from the ceiling or header, keeping the bar top completely clear.
  • Best For: Venues requiring open sightlines or maximum counter space.
  • Versions: Single Faced & Double Faced.
  • Installation: Custom drop pipe lengths available to match ceiling height.
  • Ergonomics: Recommended installation height of 55"-59" from finished floor to faucet.

Technical Specifications

Construction

• Material: 100% 304 Schedule 10 Stainless Steel pipe.
• Finish: Standard #4 Brushed Stainless Steel or Custom Powder Coated (RAL colors).
• Cooling: Glycol-ready recirculation loop ensures cold pours.

Dispensing & Dimensions

• Faucet Spacing: Standard 3" Center-to-Center spacing.
• Mounting Hardware: Includes 13 x 5" bolts and nuts.

Add-On Options

• Glass Rinser: Integrated rinser available in Center or Offset positions (Counter Mount only).

Model Comparison Summary
