Product Description

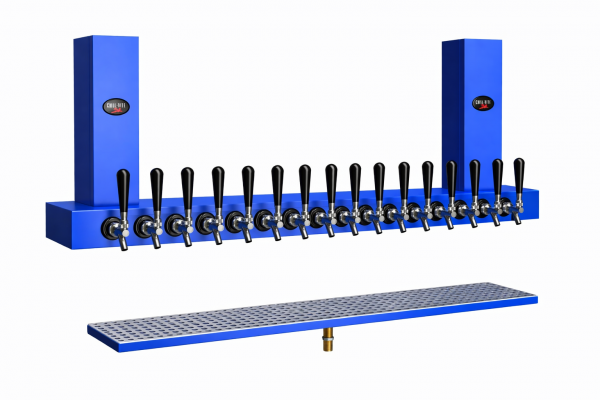

The Super Bridge Tower (SBT) is a high-capacity dispensing solution designed for venues that require extensive tap selections without compromising on structural integrity. Unlike standard fixed-height bridges, the Super Bridge series is engineered with three distinct height options (Standard, Option A, and Option B), allowing you to customize the vertical clearance to fit specific bar designs, sightlines, or large tap handles. Constructed from 304 Stainless Steel, this robust system is capable of supporting runs from 12 to 24 faucets (Counter Mount) or 12 to 20 faucets (Soffit Mount). It is available in Single Faced configurations for wall or front-bar applications and Double Faced (DF) configurations for high-volume island service.

Face Configurations

Single Faced (SF)

• Application: Standard bars where service is required from the front side only.
• Capacity: Configurable from 12 to 24 faucets (CM) or 12 to 20 faucets (SM).
• Availability: Counter Mount and Soffit Mount.

Double Faced (DF)

• Application: Island bars requiring access from both sides. Faucets are mounted on both the front and back of the bridge.
• Capacity: Configurable from 12 to 24 faucets (CM) or 12 to 20 faucets (SM).
• Availability: Counter Mount and Soffit Mount.

Mounting & Height Options

1. Counter Mount (Model: CM) A heavy-duty bridge tower that anchors to the bar top with dual outer legs.
   1. Standard Height: 13 1/4" (12-20 Faucets) or 13 3/4" (21-24 Faucets).
   2. Option A Height: 15 5/8" (12-20 Faucets) or 16 1/4" (21-24 Faucets).
   3. Option B Height: 17" (12-20 Faucets) or 17 1/2" (21-24 Faucets).
2. Soffit Mount (Model: SM) A suspended configuration that hangs from the ceiling, keeping the bar top clear.
   1. Installation: Suspended via drop pipes.
   2. Capacity: 12 to 20 Faucets.

Technical Specifications

Construction

• Material: 100% 304 Stainless Steel.
• Finish Options:
  • SS: #4 Brushed Stainless Steel (Standard).
  • PC: Powder Coated (Custom Colors).
  • G4: Brushed Gold.
  • MF: Mirror Finish.
• Cooling: Glycol-ready recirculation loop.

Dispensing & Dimensions

• Faucet Spacing: Standard 3" Center-to-Center.
• Mounting Hardware: Includes 1/2" All-Thread and nuts.
• Drainage: Two drains required on all drip pans over 47" wide.
